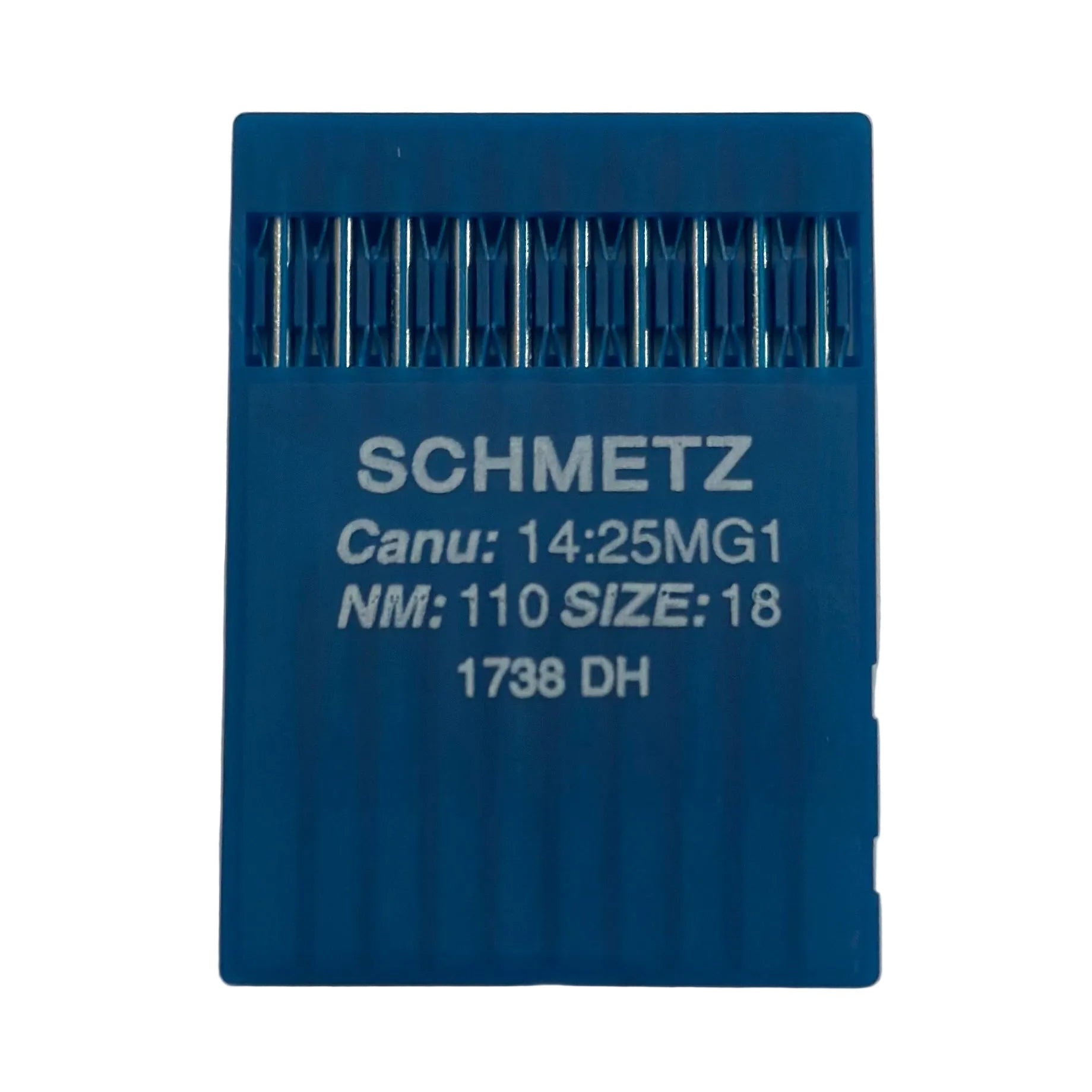

Needles for industrial sewing machines SCHMETZ 1738 | DBx1 DH - for leather (10pcs.)

Needles for industrial sewing machines SCHMETZ DBx1 DH or 1738 DH are needles for technical materials with a DH (Half triangular point) cutting tip. This tip has a semi-triangular cross-section (smaller than the D point), which makes a narrow cut in the material and creates a straight, firm stitch without pulling the material. Ideal for coarse and regular seams, as well as cross-seams on thicker covering materials.

🧵 Suitable materials

• Composite materials (for example, laminated materials combined with plastic sections)
• Plastic parts and plastic sections
• Rigid cardboard
• Canvas and tarpaulin materials
• Awning and canopy fabrics
• Other technical covering materials

✨ Where DH particularly excels

• Coarse and regular seams on technical fabrics and coverings
• Cross-seams and joins where material thickness changes
• Automotive interior trim, seats, panels
• Sewing tarpaulins, tents and canopies

🎯 DH (Half triangular point) advantages

• Narrower cut than the classic D point – less material damage
• Clean, straight penetration even in thick covering materials
• Stable stitching without pronounced needle deflection
• Especially suitable for technical, structural seams, not just decorative effect

🧶 Thread recommendations for technical materials

Indicative recommendations when choosing thread and needle for the DH point:

• For regular seams (automotive interior trim, upholstery, rigid cardboard): polyester tex 40–75 (approximately No. 40) with needle NM 110

Always advisable to test the exact combination on the specific material.

🔧 Compatibility

Suitable for industrial lockstitch (lockstitch) sewing machines designed for the DBX1, 16X231, 287 WH, 1738 (A) needle system.

Needle system designation: DBX1 DH, 16X231 DH, 287 WH DH, 1738 (A) DH

📐 Technical data

• CANU: 20:05MG1
• Tip: DH – Half triangular point (semi-triangular cutting tip)
• Coating: Chrome
• Shank Ø: 1.62 mm
• Overall length: 38.3 mm
• Length to eye: 33.9 mm
• Shank flattening: no flattening
• Blade shape: straight
• Grooves count: 1
• Stitch type: Lockstitch (straight stitch)
• Packaging: 10 needles
• Available sizes: see product variant menu

ℹ️ Note

The appearance of the final seam is affected by machine settings, thread type and material structure. If a more pronounced cutting seam or a different visual line is needed, consider needles with D, LL or other cutting tip types.

✅ Why choose SCHMETZ DBx1 DH?

• A safe choice for technical fabrics, tarpaulins and awning fabrics
• Stable, straight seam without excessive material damage
• Suitable for upholstery, automotive interiors and canvas product manufacturing
• SCHMETZ quality – made for intensive, professional industrial sewing
